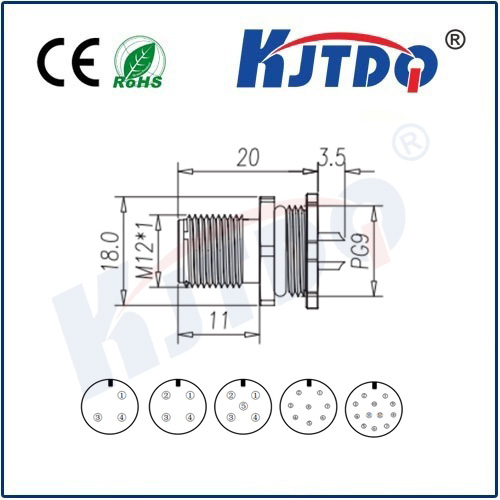

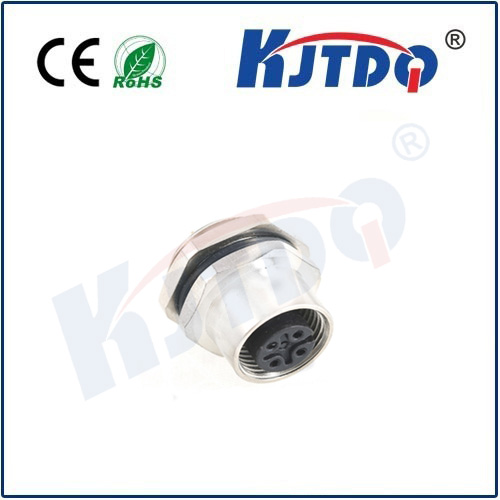

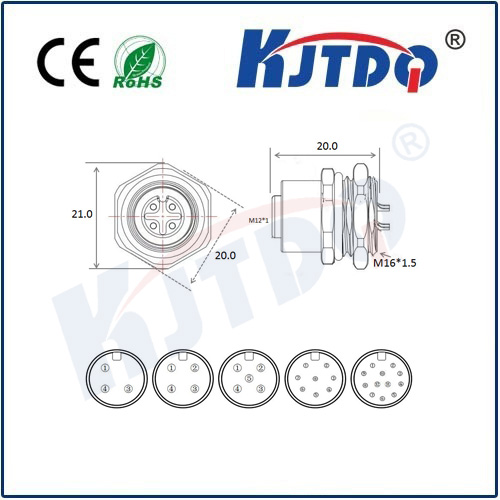

M12连接器 A型-法兰插座系列 开孔M16*1.5mm
- 针数4：M12I4K-16
- 针数4：M12I4L-16
- 针数5：M12I5K-16
- 针数5：M12I5L-16
- 针数8：M12I8K-16
- 针数8：M12I8L-16
针数 | Number of contacts | 4 | 5 | 8 |
| 锁索方式 | Connector locking system | 螺纹式/screw | ||
| 连接方式 | Termination | 焊接式/welded | ||
| 连接截面 | Wire gauge | 0.34mm²(AWG22) | 0.25mm²(AWG24) | |
| 电缆直径 | Cable outlet | 5.0mm | 6.0mm | |
| 防护等级 | Degree of protection | IP67 | ||
| 机械寿合 | Mechanical operation | >500拔插周期/>500matingcycles | ||
| 最高工作温度 | Upper temperture | +85C | ||
| 最低工作温度 | Lower temperture | -25℃ | ||
| 额定电压 | Rated voltage | 250V | 60V | 30V |
| 额定冲击电压 | Rated impulse voltage | 2500V | 1500V | 800V |
| 污染等级 | Pollution degree | 3 | ||
| 过电保护等级 | Overvoltage categorie | II | ||
| 绝缘组别 | Material group | II | ||
| 额定电流(40℃) | Rated current(40℃) | 4A | 2A | |
| 触点电阻 | Contact resistance | ≤3mΩ | ||
| 触点材料 | Material of contact | Cu/Zn(黄铜brass) | ||
| 触点电镀材料 | Contact plating | Au | ||
| 外壳材料 | Material of housing | 黄铜镀镍/brass | ||
